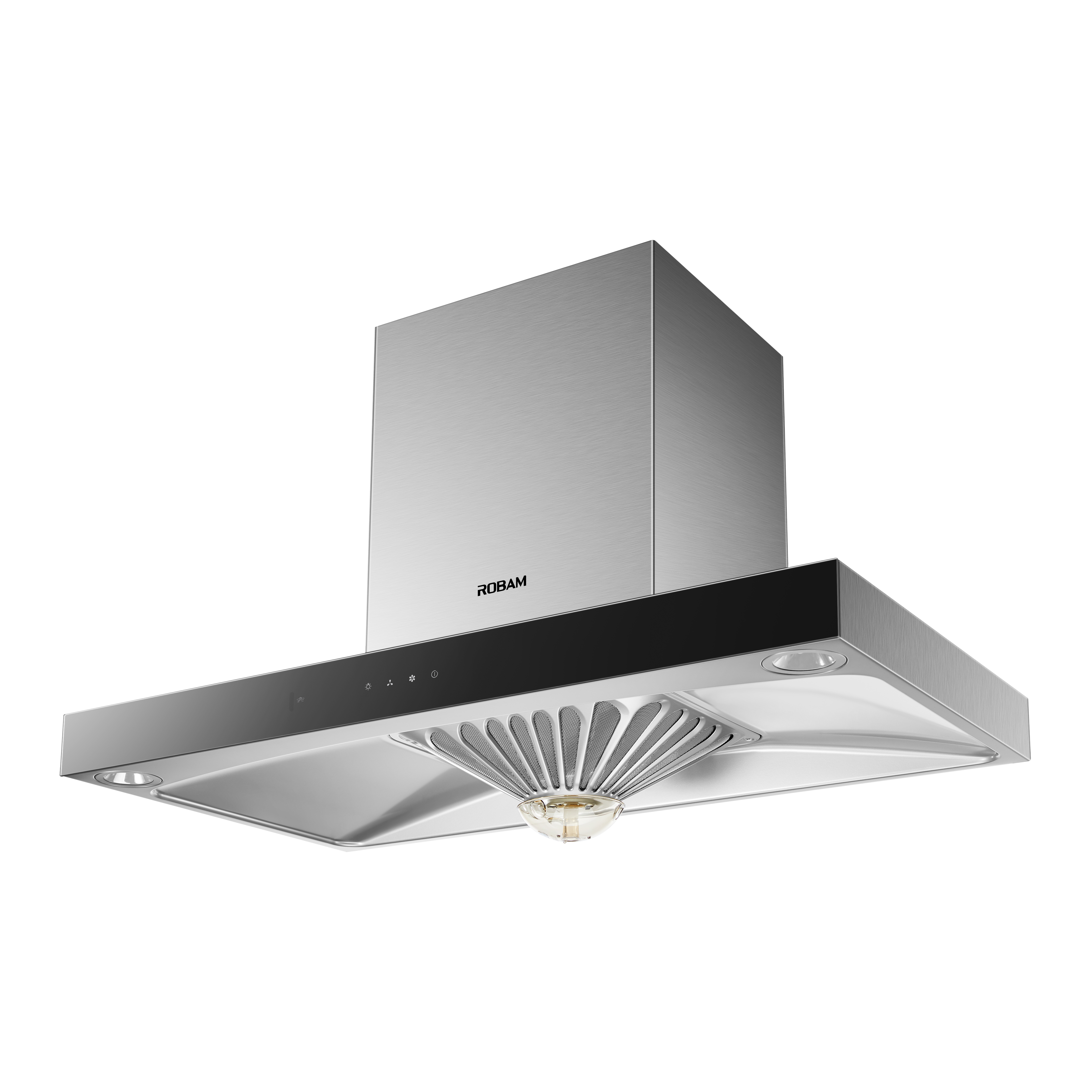

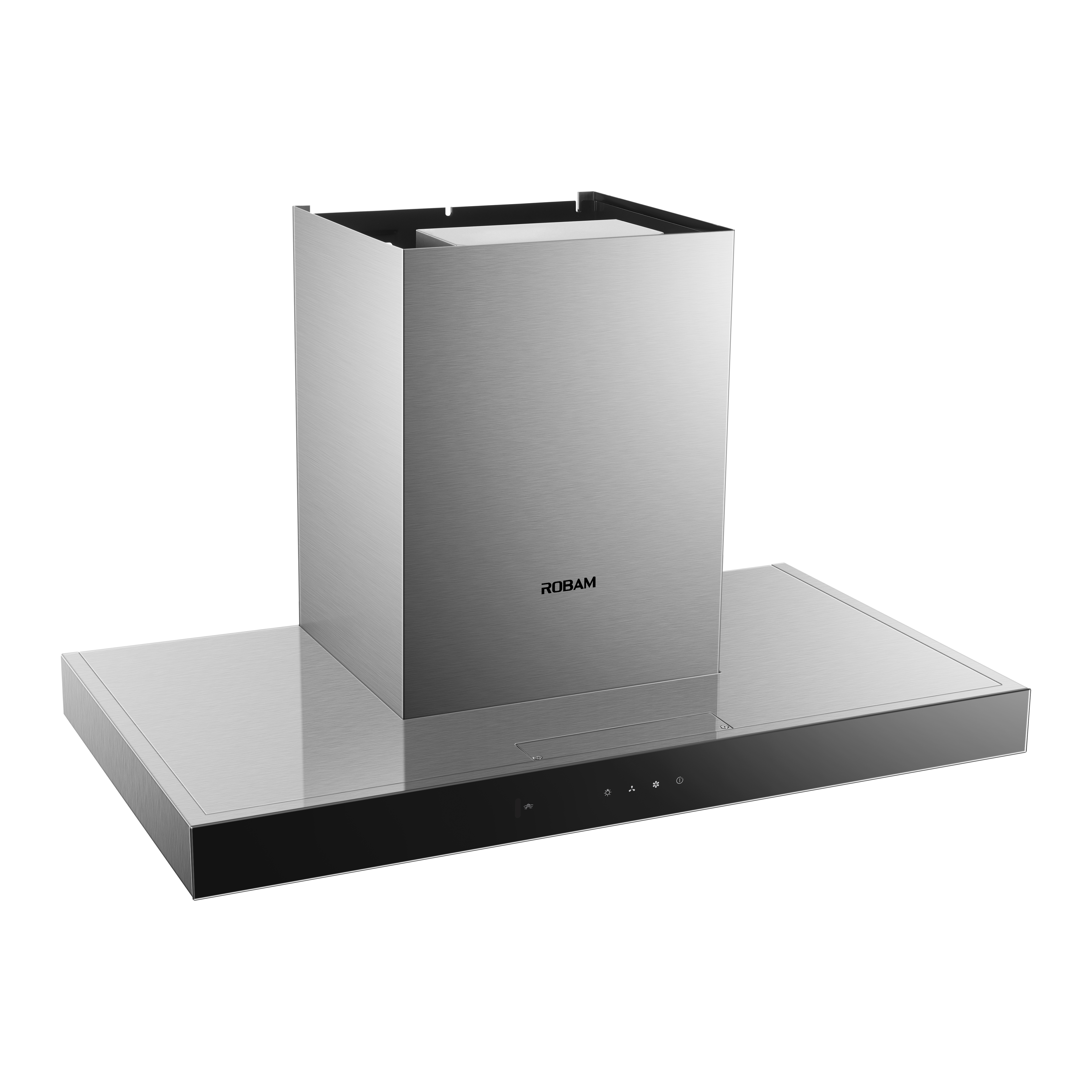

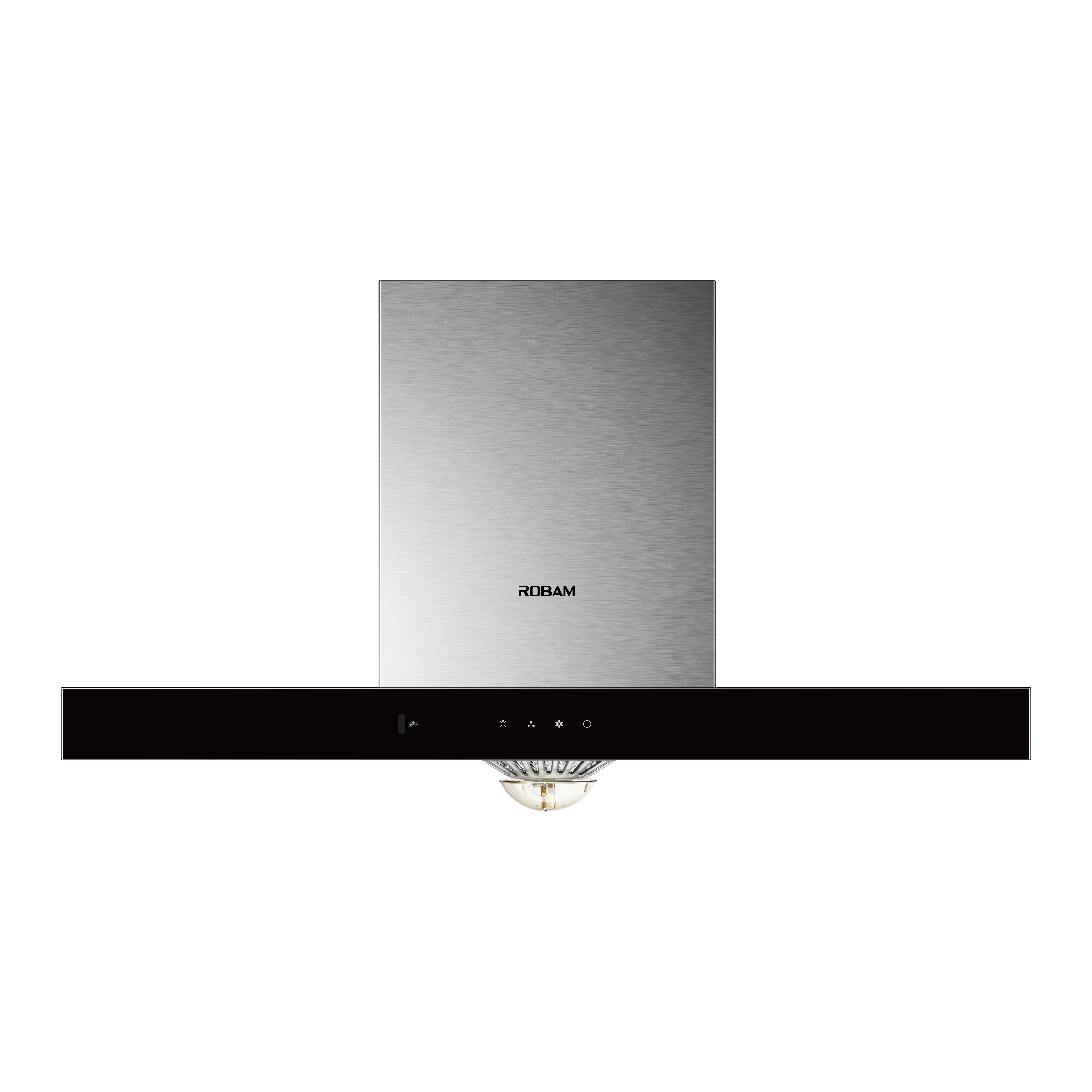

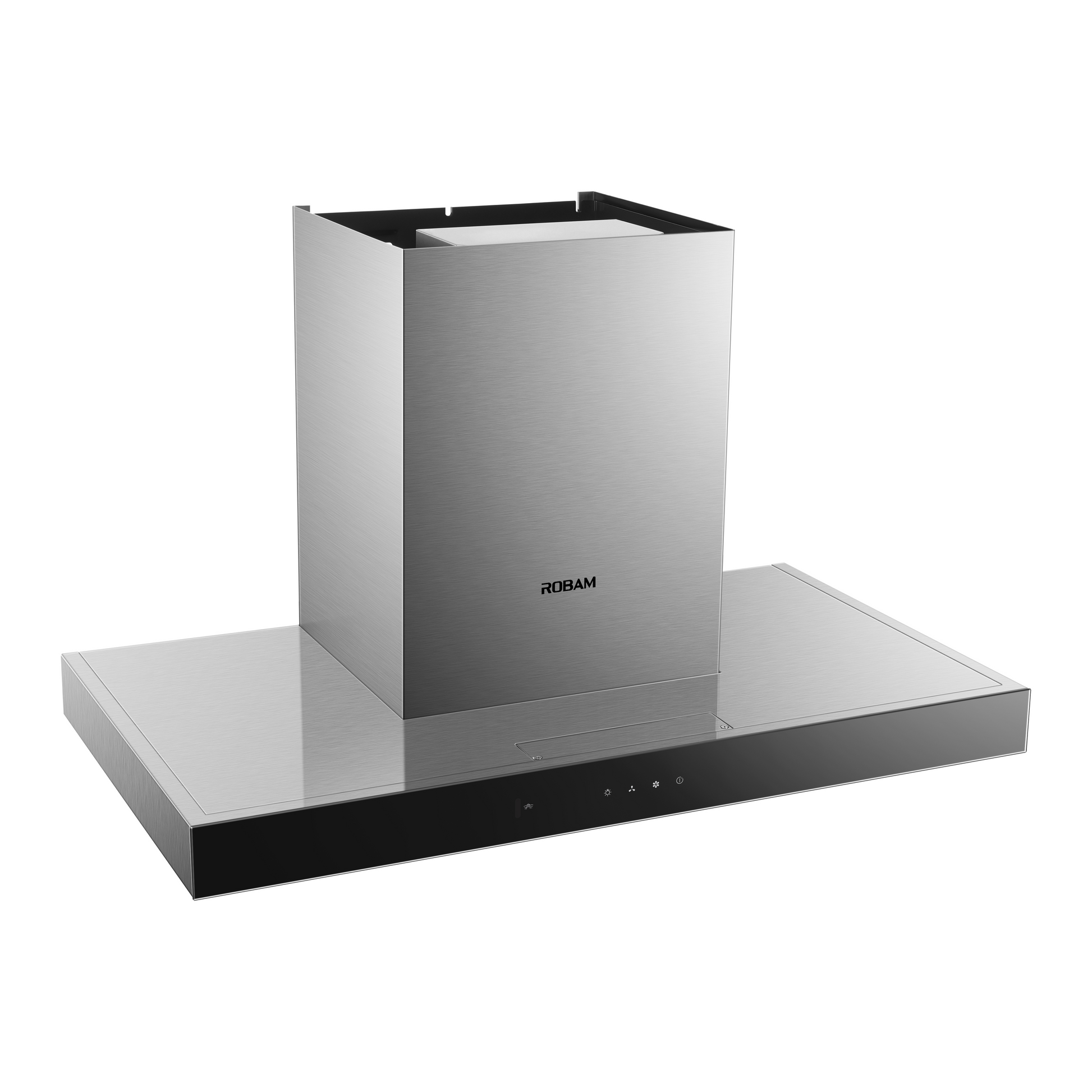

85H1
85H1
Couldn't load pickup availability
Features & Benefits
Features & Benefits
- KunPeng technology for ultimate performance
- Bottom & Side dual-suction, no blind spots
- FullyAuto adjustment, hands-free operation
- Effortless cleaning with OPTOOL Nano-coating

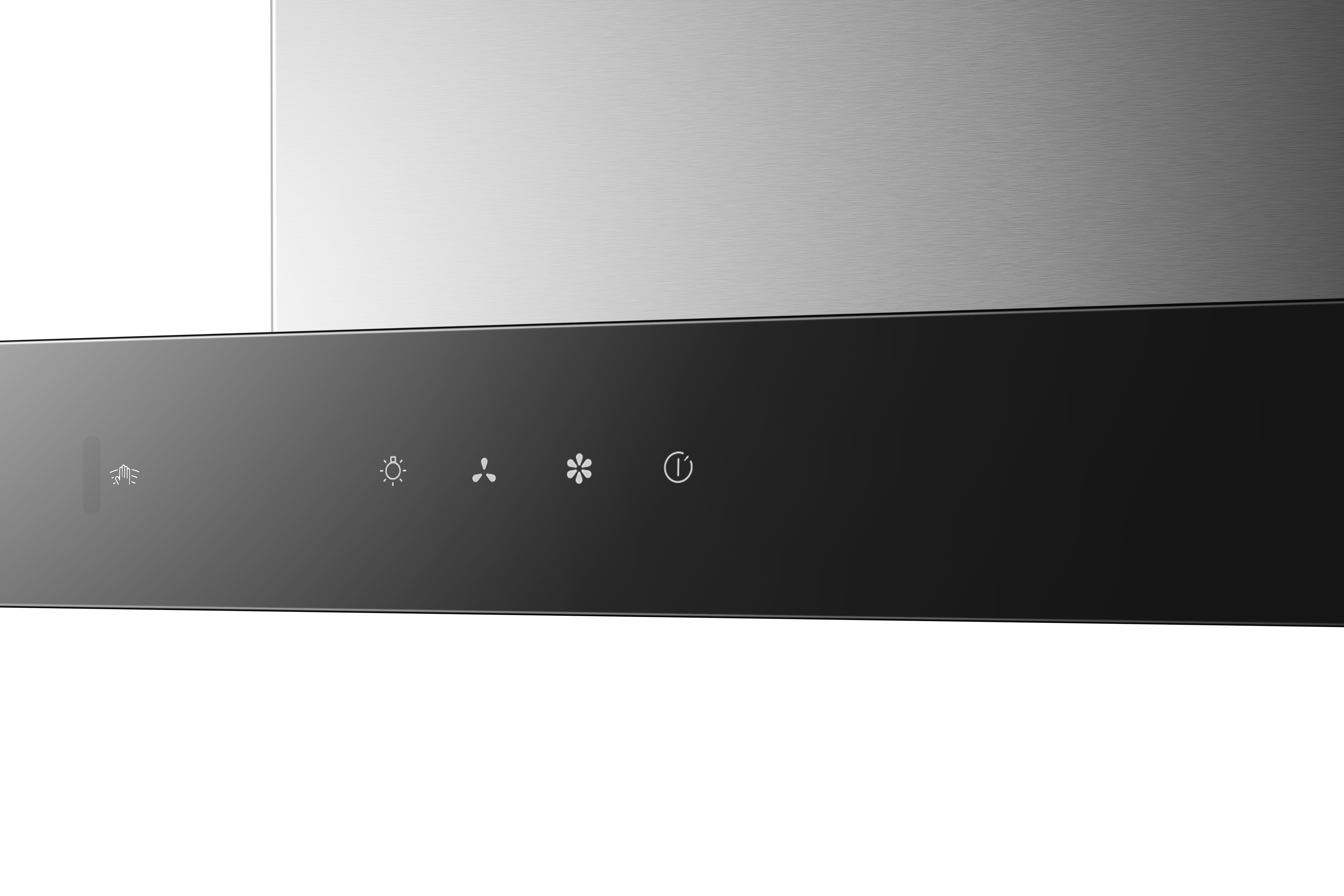

- Color film display screen, easy to use
Specifications
Specifications
Performance
IEC Airflow (m³/h): 1560
Unrestricted Airflow (m³/h): 3250
Noise (High) dB(A): 43
Noise (Low) dB(A): 38
Max Static Pressure (Pa): 1100
Appearance
Mounting Type: Under Cabinet / Wall Mount
Duct Type: Round
Venting Type: Ducted
Features & Functions
Motor: Brushless
Speeds Selections: 9 + Auto-adjust
Turbo Function: Y
Delay Shut Off: Y
Air Exchange: Y
Filter Clean Reminder: Y
Light: 2W
Filter Type: Mesh
Technical Specifications
Voltage / Frequency: 220–240V / 50–60Hz
Dimensions & Weight
Product Size (W×D×H) (mm): 895×351×645
Product Weight (kg): 27.5
Manuals & Guides
Manuals & Guides
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
A New Generation Powerful Rangehood
Powered by a smart BLDC motor, this hood for range delivers 1100CFM air suction to instantly trap stir-fry smoke while maintaining whisper-quiet efficiency during simmering. Its 1000Pa maximum static pressure doubles exhaust power, decisively eliminating grease and odors.
Effortless Clean: Nano Anti-Stain Tech
With Daikin OPTOOL nano anti-stain coating, the surface is smoother and more wear-resistant, making it highly resistant to scratches. Oil and water stains bead up automatically, requiring just a simple wipe to clean, resistant to fingerprint marks.
Max Collection Design
The R-Max series features an industry-leading, exceptionally large smoke collection screen design, which is up to 3.1sq.ft. It perfectly captures smoke from all burners, operating more efficiently by being closer to the smoke source.
